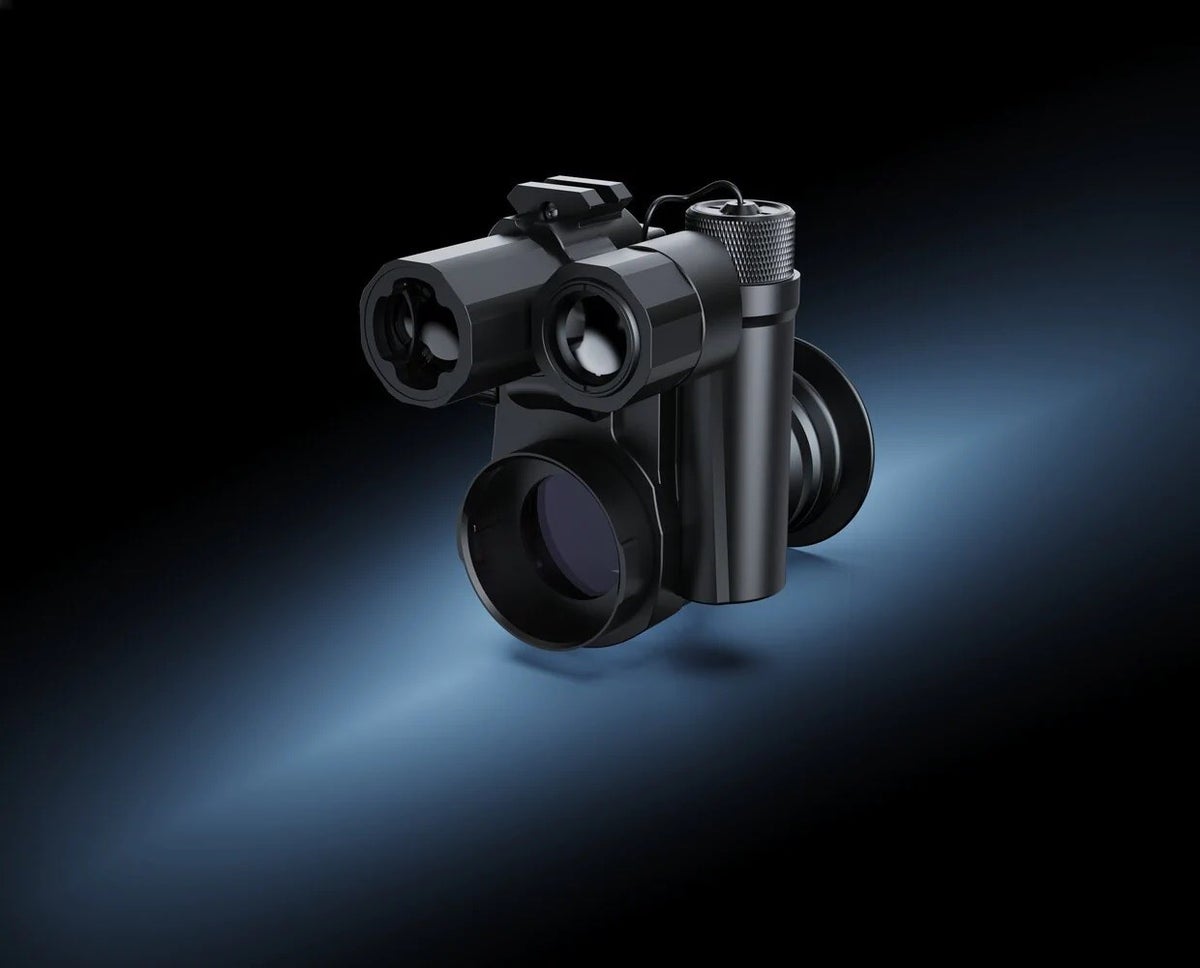

Pard NV007SP LRF Night Vision Device 850nm

The Pard NV007SP LRF is an accessory that attaches to the eyepiece of a rifle scope via an adapter; thanks to its infrared illuminator, it allows hunting to continue even in the dark, within the limits permitted by hunting laws. The device can be mounted on any rifle scope, and installation does not require separate scope alignment.

Compared to its predecessor, the Pard NV007SP offers a dramatically better and sharper image thanks to its 2560 x 1440 2K high-resolution sensor. The adapter makes attachment to the rifle scope quick and easy. Includes a mounting adapter (max 45mm)

The Pard NV007SP LRF model features a laser rangefinder with a range of up to 1000m, which significantly facilitates shooting in the dark.

With the Pard NV007SP, you can easily and effortlessly capture sharp images and videos and share them with your friends in an instant via WiFi using your smartphone.

NV007SP-LRF Technical Specifications

• Night Vision Attachment for Rifle Scopes

Sensor

• Resolution (px) 2560*1440
• Sensitivity (lux) 0.001
• Frame rate (fps) 30

Optics

• Lens (mm) 22.5
• Optical magnification (x) 4x
• Digital magnification (x) 1-3.5x
• Continuous digital magnification 4-14x
• Field of view (HxV) H: 22º V: 12º D: 25º
• Focus range 3 cm–∞
• Viewing distance (mm) 25 mm
• Diopter adjustment ±5D
• IR illumination
• IR type VCSEL
• IR power 5W
• IR illumination levels 3 levels
• IR range (m) 350m
• IR wavelength (nm) 850nm

Display

• Type OLED
• Resolution (px) 1024*768
• Reticle styles 6
• Reticle colors white/yellow/green
• Color display Color/Black&White

Photo/Video

• Photo resolution (px) 2592*1944
• Photo format JPG
• Video resolution (px) 1920*1080
• Video format MP4
• Storage (GB) TF card (128GB)

Features

• LRF operating range (m) 1097m
• Unit selection Meters/Yards
• Recall recording Yes
• Auto recording Yes
• Continuous recording Yes
• Timestamp Yes
• Audio recording Yes
• Key tones Yes
• Exposure compensation Yes

Device

• USB Type TYPE C
• HDMI Output Yes

Connections

• WiFi Yes
• Supported APIs PardVision

Battery

• Battery type Lithium Ion 18650
• Output voltage (V) 3.7
• Operating time (h, max) 8
• External power supply connection (V) USB Type-C

Durability

• Protection IP67
• Operating temperature range (°C) -20 to 40℃
• Max recoil (J) 6000

Material

• Body AL6061/plastic
• Objective lens Glass

Size

• Device dimensions (W x L x H, mm) 105*120*71/105*134*71
• Weight (g) 355/310

NOTE! If the binoculars on which you are mounting the Pard device do not have parallax adjustment, the image sharpness may not be optimal for the reticle, especially if the magnification starts at, for example, x2.5
